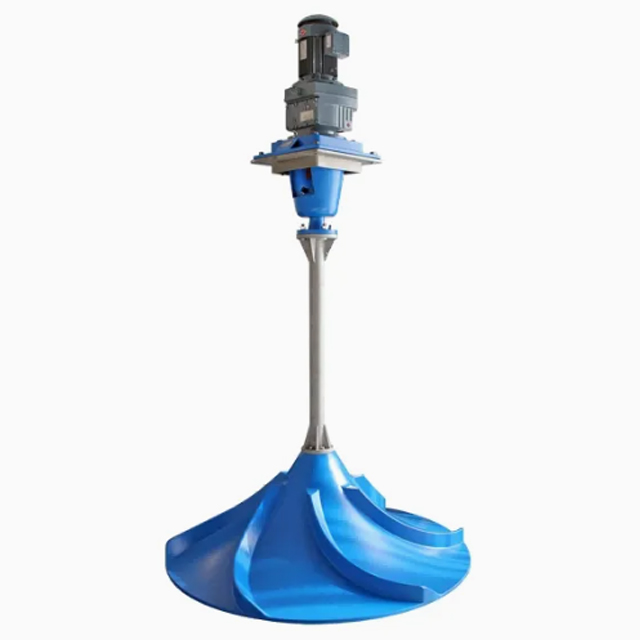

PF Series Vertical Hyperboloid Agitator Mixer are new products developed by our company by introducing foreign technology. It is widely used in environmental protection, chemical industry, energy, light industry and other industries where solid, liquid and gas agitation and mixing of tuck bodies are required, especially for coagulation tanks, conditioning sites, anaerobic tanks, nitrification and denitrification tank.
| Model | Impeller Diameter (mm) | Rotation speed(r/min ) | Power(kW) | Service range (m) | Weight (kg ) |
| PF | 500 | 40-250 | 0.75-1.5 | 1-3 | 320 |
| 1000 | 30-80 | 1.1-2.2 | 2-5 | 480 | |
| 1500 | 30-60 | 1.5-3 | 3-6 | 510 | |
| 2000 | 20-42 | 2.2-3 | 6-14 | 560 | |
| 2500 | 20-40 | 3-5.5 | 10-18 | 640 | |
| 2800 | 20-30 | 4-7.5 | 12-22 | 860 |
The PF Vertical Hyperboloid Agitator Mixer delivers optimal mixing and agitation for industrial and municipal wastewater treatment plants. Achieve uniform blending, zero dead zones, and up to 50% energy savings over traditional paddle mixers.
Hyperboloid agitators excel in solid-liquid-gas interflow across:
Environmental protection & sewage treatment
Chemical processing
Energy production
Light industry
Uniform Mixing + No Dead Angles
Hyperboloid impeller generates dual-flow (radial + axial) for 100% tank coverage — outperforming paddle mixers in efficiency and energy use.
Simple Design, Easy Install & Maintenance
No gearbox. Vertical guide rails enable tool-free retrieval in minutes.
Superior Performance Across Water Treatment Stages
Ideal for high-sludge, viscous, or floc-sensitive processes.
Energy-Saving Impeller Technology
Large specific surface area + compact motor = 30–50% lower power consumption.
| Feature | PF Hyperboloid Mixer | Paddle Mixer |
|---|---|---|
| Energy Efficiency | ⭐⭐⭐⭐⭐ (50% savings) | ⭐⭐ |
| Mixing Uniformity | No dead zones | Sedimentation risk |
| Maintenance | Tool-free, 10-min swap | Complex repairs |
1.What is a vertical hyperboloid agitator mixer?
A vertical hyperboloid agitator mixer is a submersible or dry-mounted mixing device with a hyperboloid (curved, hyperbolic surface) impeller mounted on a vertical shaft near the tank bottom. The impeller rotates at low speeds (typically 20-250 RPM) to create a bottom-up circulating flow, combining axial (vertical) and radial (horizontal) movements for thorough homogenization. This design, pioneered in the 1990s by INVENT, excels in suspending solids, preventing sedimentation, and mixing solids, liquids, and gases without high energy use.
2.How does a hyperboloid mixer work?
The hyperboloid impeller draws fluid downward and accelerates it radially outward along its curved surface, creating turbulent flow at the tank bottom. This flow reflects off the tank walls, forming a spiral circulation that rises upward and recirculates. The large impeller diameter (500-2800 mm) and low rotational speed minimize shear forces on sensitive particles (e.g., flocs in wastewater), while generating high turbulence to resuspend solids. Computational fluid dynamics (CFD) simulations confirm no dead zones, even in deep or irregularly shaped tanks.
3.What are the main applications?
These mixers are ideal for wastewater treatment processes like equalization tanks, anaerobic digesters, anoxic/oxic zones (AO/A2O), flocculation, nitrification/denitrification, and sludge homogenization. They're also used in industrial settings for chemical blending, food processing, and pulp/paper industries where low-shear mixing of viscous or solid-laden fluids is needed. They handle tank volumes from 1-22 m² per unit and depths up to very deep basins (e.g., HYPERDIVE® for >10m).
4.What are the key advantages over traditional mixers?
Energy Efficiency: Consumes as low as 2 W/m³ in activated sludge tanks, far below jet mixers or high-speed propellers, due to optimized flow patterns. Low Shear: Hyperboloid shape and slow speeds (e.g., <100 RPM) protect fragile flocs or emulsions, unlike high-shear agitators. No Dead Zones: Radial outflow covers the entire bottom, eliminating sedimentation in corners. Versatility: Works in round, square, or rectangular tanks; multiple units can be used for larger volumes. Durability: Corrosion-resistant materials (stainless steel or FRP) and low maintenance needs.
