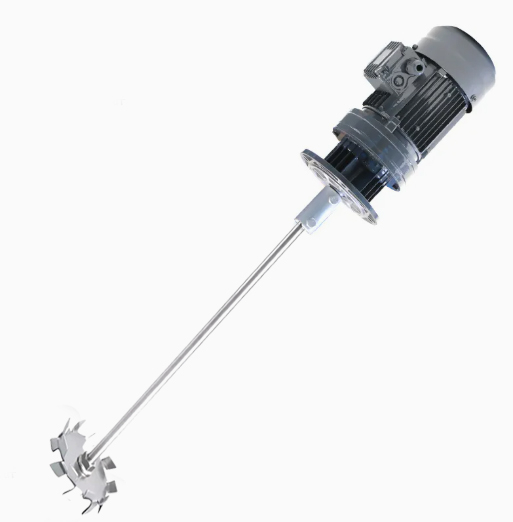

Disc agitator (also commonly called disk turbines or sawtooth dispersers / dissolver disks) is indeed a device designed to induce motion in a fluid (usually a liquid or slurry) through stirring, shaking, or mixing, primarily to achieve homogeneity, heat transfer, mass transfer, suspension of solids, dispersion, emulsification, or chemical reaction.
Design: Flat or slightly conical disk with serrated (sawtooth) edges. The teeth are sharply angled alternately upward and downward.
Primary mechanism: Extremely high shear stress at the periphery of the disk due to high tip speed (typically 15–30 m/s).
Flow pattern: Predominantly radial flow with strong turbulent eddies at the disk edge. Very little axial (top-to-bottom) flow on its own.
Key effects:
Rapid break-up of agglomerates
Reduction of particle size (deagglomeration, depolymerization of fibers)
Fast wetting and incorporation of powders into viscous liquids
High local energy dissipation
Food industry: mayonnaise, ketchup, chocolate pastes, peanut butter
Pharmaceutical/cosmetic: creams, ointments, gels, toothpastes
Chemical/paint/coatings: pigment dispersion in resins, inks, adhesives, sealants
1.What is a disc agitator (dissolver disc or sawtooth impeller)?
A disc agitator is a type of impeller featuring a flat disc with sharp, serrated teeth (sawtooth design) along its outer edge, mounted on a high-speed rotating shaft. It creates a radial flow pattern in the mixing vessel, generating a vortex that draws in materials for intense shearing action. This breaks down agglomerates, disperses solids into liquids, and emulsifies phases. It's commonly used in high-speed dispersers for paints, inks, adhesives, cosmetics, and pharmaceuticals.
2.How does a sawtooth impeller work?
The impeller rotates at high tip speeds (typically 4,000–6,000 ft/min or higher), accelerating fluid layers from a slow-moving central vortex to high velocity upon contact with the disc. This rapid acceleration tears apart material layers, imparting mechanical and hydraulic shear. The sawtooth teeth enhance cutting and dispersion by creating turbulence and high-pressure zones. Unlike axial-flow impellers (e.g., propellers), it focuses on radial discharge toward the tank walls, promoting uniform breakdown rather than bulk circulation.
3.What are the key applications of disc agitators?
Dispersion and deagglomeration: Incorporating pigments, powders, or solids into liquids (e.g., paints, inks, dyes). Emulsification: Creating stable oil-in-water or water-in-oil emulsions in cosmetics or food processing. Wet milling and homogenization: Reducing particle size in chemical, pharmaceutical, and adhesive formulations. High-viscosity mixing: Handling media up to several hundred thousand cPs, often in conjunction with anchor or helical agitators for bulk flow. It's not ideal for low-shear tasks like gentle blending or crystallization, where it may cause excessive breakdown.
4.What are the advantages of using a sawtooth impeller over other agitators?
High shear efficiency: Provides superior particle size reduction and droplet breakup compared to low-shear paddles or propellers. Versatile flow: Generates turbulent radial flow for quick incorporation of solids, with good pumping action in aggressive tooth designs. Ease of use: Open design allows simple cleaning and scalability from lab to production scales. Cost-effective: Lower initial cost than rotor-stator mixers, with robust performance in batch processes. Drawbacks include higher power consumption (as a "high-power, low-volume pump") and potential inefficiency for very low-viscosity or large-volume blending.
5.What materials are sawtooth impellers typically made from?
Standard construction uses 304 or 316 stainless steel for corrosion resistance. For abrasive media (e.g., pigments with silica), hardened 304 SS, wear-resistant coatings (e.g., tungsten carbide or ceramic), or solid ceramic discs are common to extend lifespan. Custom finishes like electropolishing are available for sanitary applications in food/pharma.
6.How do you select the right disc size and speed for a given application?
Disc diameter: Typically 30–80% of tank diameter for optimal vortex formation; smaller for high shear, larger for better flow. Tip speed: Aim for 4,000–5,700 ft/min for standard dispersion; higher (5,700+ ft/min) for ring-style variants needing more hydraulic shear. Factors to consider: Viscosity (low to medium-high), batch volume, solids loading, and desired particle size. Use CFD simulations or manufacturer guidelines (e.g., HG/T 3796 standards) for precise sizing. Moderate-shear versions run at half speed with larger teeth for pumping-focused tasks.
