The GR Series Helical Geared Motor by Guomao Reducer is a high-performance, modular inline gear motor designed for industrial applications, offering reliable torque transmission and efficiency. It features single-stage, two-stage, or three-stage helical gears, with optional single or two-stage bevel gear combinations. The motor has low-eccentricity input and output shafts for precise alignment, ensuring smooth operation and minimal vibration. It supports foot-mounted or B5 flange-mounted installations, with the option for an extended bearing housing and multiple input shaft configurations, providing versatility, low noise, and high precision.
| Item | Parameters |
| Power | 0.12-200 |
| Speed Ratio | 1.26-33000 |
| Maximum Output Torque(kN.m) | 50kN.m |
Modular and Versatile Design: Supports single-stage, two-stage, or three-stage helical gears, with options for bevel gear combinations.
Precision Engineering: Input and output shafts with small eccentricity for accurate alignment and reduced vibration.
Durability and Efficiency: High transmission efficiency, low noise levels, and a long service life; capable of withstanding significant radial loads.
Flexible Configurations: Multiple input shaft options and easy maintenance.
Compact and Robust: Small volume with cast iron housing for strength in demanding environments.
What is the GR Series Helical Geared Motor?
The GR Series, manufactured by Guomao Reducer, is a high-performance inline helical gear motor designed for industrial applications. It offers reliable torque transmission, high efficiency, low noise, and a modular design with single-stage, two-stage, or three-stage helical gears, and optional bevel gear combinations.
What are the key features of the GR Series?
Shaft Design: Input and output shafts with small eccentricity for precise alignment and minimal vibration. Gear Configurations: Single-stage, two-stage, or three-stage helical gears; optional single or two-stage bevel gear combinations. Mounting Options: Foot-mounted or B5 flange-mounted, with an optional extended bearing housing. Efficiency and Durability: High transmission efficiency, low noise, and robust cast iron housing for long service life. Power Range: 0.12–200 kW with transmission ratios from 1.26 to 33,000 and maximum output torque up to 50 kN·m.
What applications is the GR Series suitable for?
New Energy Equipment: Charging systems, slurry conveying, and glue machines. Hoisting Machinery: Marching motion, slewing, and hoisting mechanisms. Conveying Systems: Bucket, screw, and belt conveyors. Other Industries: Mining, cement production, and general industrial automation.

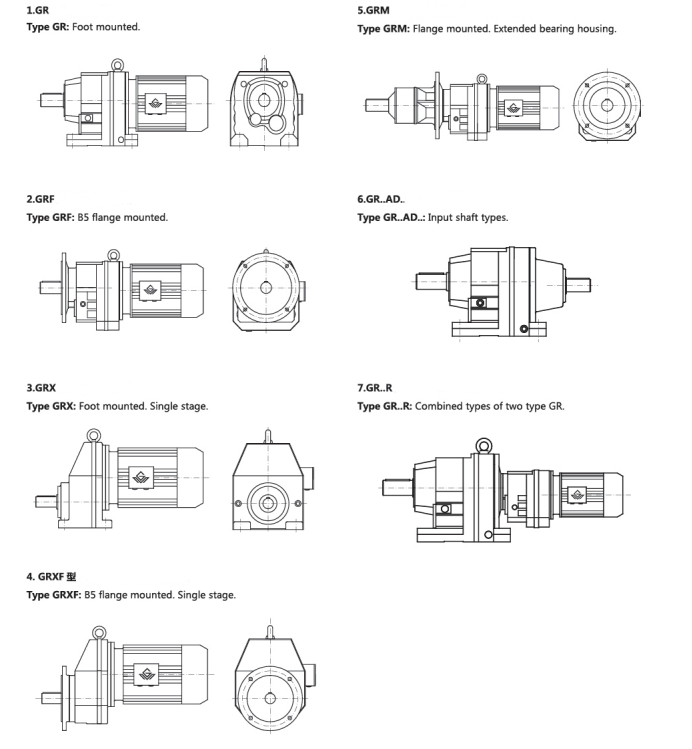

What mounting options are available?
The GR Series supports foot-mounted and B5 flange-mounted installations. An optional extended bearing housing can be added for enhanced stability in demanding applications.
Can the GR Series be customized?
Yes, it offers multiple input shaft configurations and modular designs, allowing customization to meet specific application needs. Contact Guomao Reducer or their distributors for tailored solutions.
What are the benefits of the low-eccentricity shafts?
The small eccentricity of input and output shafts ensures precise alignment, reducing vibration, improving efficiency, and extending the lifespan of the motor and connected equipment.
How does the GR Series ensure low noise and high precision?
The helical gear design, combined with precision-engineered shafts and high-quality materials, minimizes noise and ensures smooth, accurate operation, even under heavy loads.
