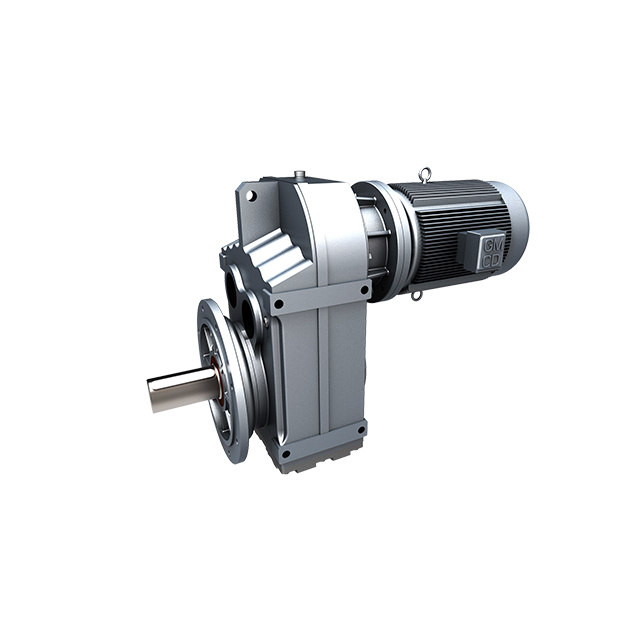

he GF Series parallel-shaft helical geared motors combine efficient power transmission, compact design, and high torque output with versatile installation options (foot-mounted, B5/B14 flange-mounted, shaft-mounted) and multiple input/output shaft types, making them ideal for space-constrained industrial applications requiring smooth, low-noise operation.
| Item | Parameters |
| Power | 0.12-200kW |
| Speed Ratio | 3.78-31000 |
| Maximum Output Torque(kN.m) | 18kN.m |
Efficient Power Transmission: Helical gears provide smooth and efficient power transfer, maximizing energy use and reducing losses.
High Torque Output: Designed to deliver high torque, making them suitable for demanding industrial applications.
Compact Design: Their space-saving structure is ideal for machinery with limited installation space.
Low-Noise Operation: The helical gear design ensures smooth and quiet performance, minimizing operational noise.

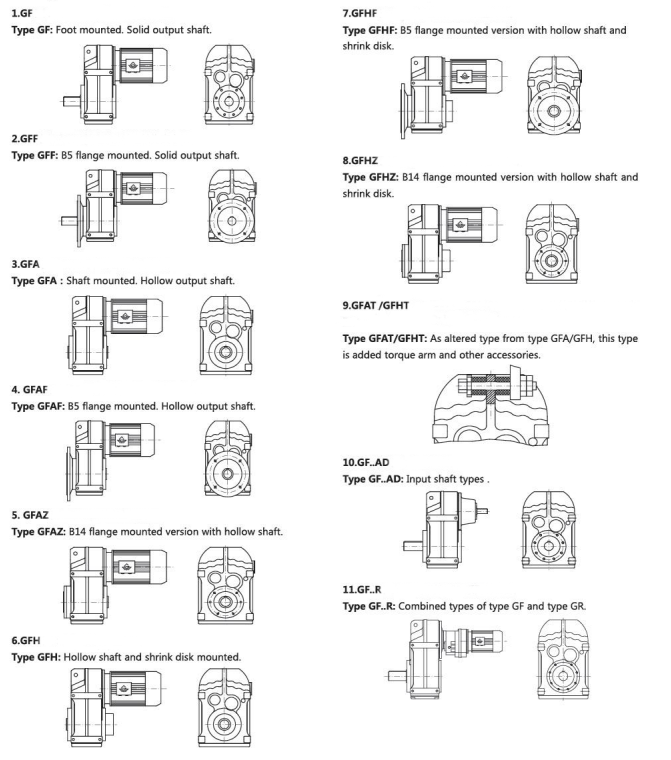

Versatile Installation Options: Available in foot-mounted, B5 flange-mounted, B14 flange-mounted, and shaft-mounted configurations for flexible integration.
Multiple Shaft Configurations: Offers various input shaft types and output shaft options (hollow with locking discs or solid shafts) for diverse application needs.
Reliable and Durable: Two or three stages of helical gears enhance durability and reliability under heavy loads.
What is the GF Series Parallel Shaft Helical Geared Motor?
The GF Series is a type of geared motor that combines helical gears with parallel shafts for efficient power transmission. It consists of 2 or 3 stages of helical gears, making it ideal for applications needing compact design and high output torque. Output options include hollow shafts with locking discs or solid shafts, allowing bidirectional operation (clockwise or counterclockwise).
What are the key features and benefits?
Compact and Modular Design: Space-saving structure using helical gears and parallel shafts, easily combinable with different motors or power sources. High Efficiency: Operates on helical gear meshing principles for smooth, low-noise performance. Versatility: Runs in both directions; temperature range of -10°C to 40°C; suitable for harsh manufacturing environments. Durability: Robust build with long service life, high fatigue strength, and wear-resistant gearing.
What are the common applications?
Primarily used in conveyors, material handling, processing equipment, and machinery requiring low-speed, high-torque operation. It's especially suited for space-constrained setups like production lines, mixers, and automated systems.
How should it be installed?
Mount on a stable, level foundation to avoid vibration and ensure smooth cooling airflow. Use flexible couplings to prevent axial/radial loads on shafts; avoid rigid fixed couplings to minimize bearing damage. For output shafts with protrusions (e.g., gears or sprockets), install protective devices. Options: Foot-mounted, flange-mounted (B5/B14), or shaft-mounted. Drain any oil from the base before installation and align precisely with the driven equipment.
What maintenance is required?
Routine Checks: Inspect oil levels and quality regularly; change lubricant per manufacturer intervals (typically every 5,000–10,000 hours). No Frequent Servicing: Designed for long, maintenance-free operation with wear-free gearing. Troubleshooting: Monitor for unusual noise/vibration (indicating misalignment) or leaks. If radial loads are high on the output shaft, opt for reinforced models. Environment: Keep within -10°C to 40°C; ensure dust/moisture protection.
