GK Series Helical-Bevel Geared Motor

 GK Series Helical Bevel Geared Motor

The GK Series Helical Bevel Geared Motor from Guomao Reducer delivers efficient right-angle power transmission for industrial applications like conveyors, mixers, and material handling. Featuring two-stage helical gears and one-stage bevel gears, it ensures smooth, compact torque multiplication with vertical output shafts relative to inputs. Choose from versatile GK series installations: foot-mounted, B5 flange-mounted, B14 flange-mounted, shaft-mounted, or torque arm-mounted. Options include multiple input shaft types, plus hollow output shafts with locking discs or solid shafts—ideal for your power transmission needs.

Parameters of  GK Series Helical Bevel Geared Motor

Drawing of  GK Series Helical Bevel Geared Motor

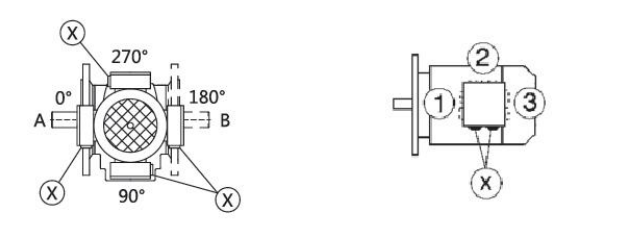

GK Series Helical Bevel Geared Motor Box Position and Cable Entry

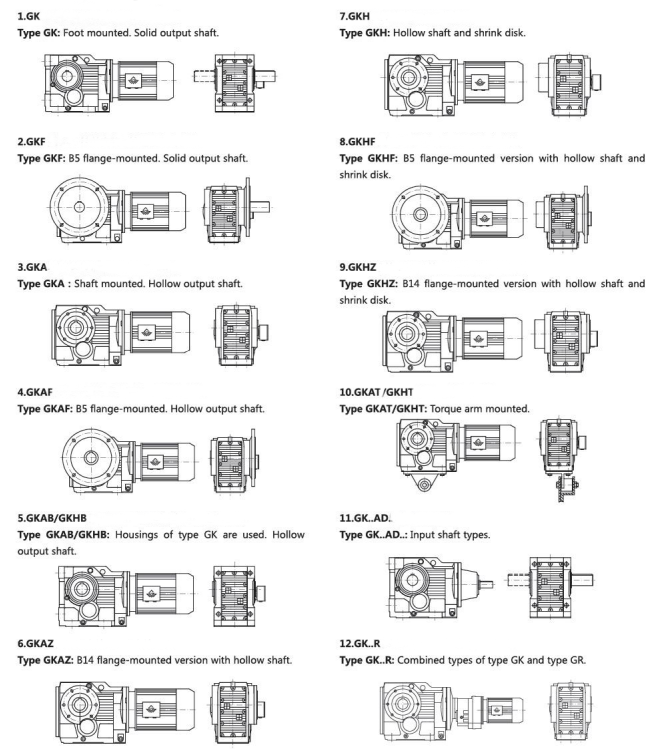

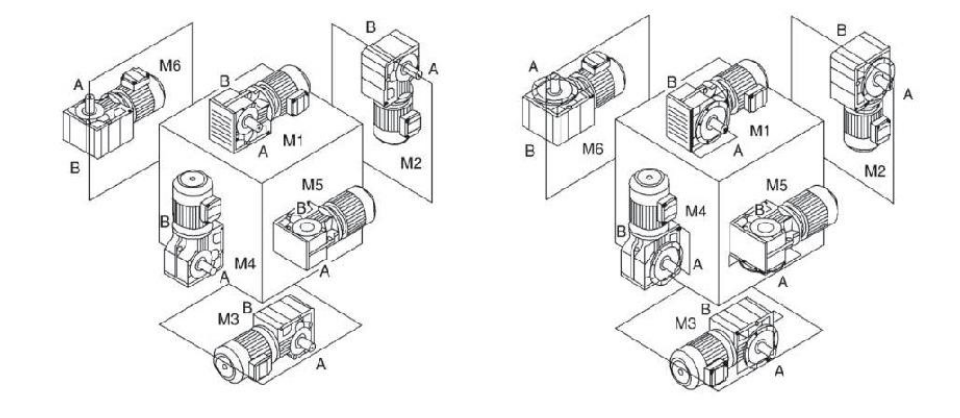

GK Series Helical Bevel Geared Motor Mounting Arrangements Description

Advantages of GK Series Helical Geared Motor

• The GK Series features a compact 90° right-angle design with 2-stage helical gears and 1-stage bevel gears for smooth power transmission.

• It provides vertical output shafts perpendicular to inputs, ideal for direct vertical drive in elevators and cranes.

• Versatile installation includes foot-mounted, B5/B14 flange, shaft-mounted, or torque arm options for easy integration.

• Output shafts offer hollow types with locking discs or solid shafts, plus multiple input shaft configurations for flexibility.

• With 5:1-200:1 ratios and 20-30% cost savings over imports, it's the affordable choice for custom OEM solutions.

Packaging & Shipping of GK Series Helical Geared Motor

FAQ of GK Series Helical Geared Motor

1. What is the gear configuration of the GK Series Helical Bevel Geared Motor?

    It features a compact 90° right-angle design with 2-stage helical gears and 1-stage bevel gears for smooth, efficient power transmission in conveyors and mixers.

2. Q2: How is the output shaft oriented in the GK Series?

   Vertical output shafts are perpendicular to inputs, making it ideal for direct vertical drives in elevators, cranes, and material handling systems.

3. Q3: What mounting options are available for the GK Series?

   Versatile installations include foot-mounted, B5/B14 flange-mounted, shaft-mounted, or torque arm options for quick integration in automation setups.

4. Q4: What shaft types does the GK Series offer?

   Output shafts include hollow types with locking discs or solid shafts, plus multiple input shaft configurations for easy load connections and flexibility.

5. Q5: What are the efficiency and torque specs of the GK Series?

   Up to 95% efficiency delivers maximum torque of 18,000 Nm with quiet operation under 70 dB, perfect for energy-saving industrial applications.
