The ZY series cylindrical gear reducer is a high-precision, heavy-duty parallel shaft gearbox with external meshing gears, made from durable carburized and quenched low-carbon alloy steel. Standardized under JB/T8853-2001, it ensures excellent contact performance and reliable speed reduction and torque multiplication for industrial applications.
Improved Energy Output:Enables photovoltaic panels to track the sun in real time, optimizing the angle of incidence, resulting in a 15-25% increase in annual energy production compared to fixed-tilt systems.
High-Precision Tracking:The low backlash design ensures precise alignment, suitable for single-axis, dual-axis, or centralized photovoltaic systems.
Strong Torque and Load Capacity:High output torque (up to 38.7 kN·m) and wind load resistance support large arrays.
Durable and Environmentally Resistant:IP66 protection, corrosion resistance, and extreme temperature fluctuations ensure long service life in harsh environments.
Low-Maintenance and High-Efficiency: A self-locking mechanism reduces wear and tear, and a low-power motor drive ensures low maintenance costs and high operational efficiency.
Compact and Economical:The integrated design simplifies installation, reduces weight and costs, and is suitable for large-scale photovoltaic power plants.
1. What is a Solar PV Tracking Slewing Reducer?
A slewing reducer is a self-contained rotary drive integrating a slewing ring bearing, worm gear, housing, and seals. It provides controlled rotation under heavy loads, supporting radial, axial, and tilting forces. In solar PV systems, it rotates panels or arrays to track the sun's path, typically in single-axis (east-west) or dual-axis (plus seasonal tilt) configurations, enhancing energy capture by 15-40% over fixed systems.
2. How Does a Slewing Reducer Work in Solar Trackers?
It uses a worm gear meshed with a slewing ring to transmit torque from a motor (DC, AC, or hydraulic) for slow, precise rotation. The self-locking worm prevents back-driving under wind loads. Sensors and controllers calculate sun position (via ephemeris data or feedback loops) to adjust the angle, ensuring panels remain perpendicular to sunlight. This minimizes incidence angles, reducing reflection losses.
3. What Are the Key Advantages of Using Slewing Reducers in Solar PV Systems?
Efficiency Boost: Increases annual yield by 15-25% (single-axis) or up to 40% (dual-axis) via optimal tracking.
Load Handling: High torque (e.g., 38.7 kN·m holding) withstands wind, snow, and array weights.
Durability: IP65/IP66 sealing resists corrosion, dust, and extreme temperatures (-40°C to 80°C).
Low Maintenance: Self-locking reduces wear; compact design cuts installation costs.
Versatility: Suits flat single-axis trackers, heliostats, or CSP troughs.
4. What Types of Slewing Reducers Are Available for Solar Applications?

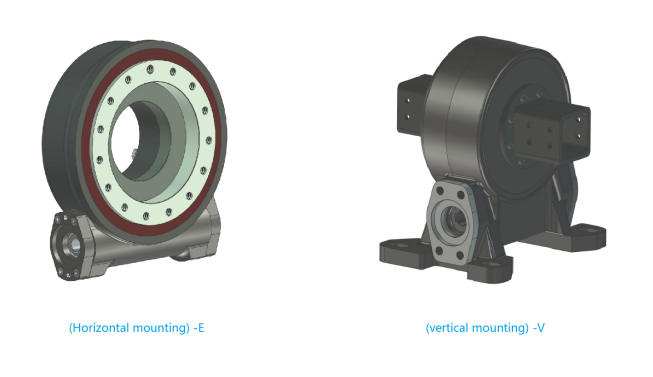

Single-Axis (Horizontal/Vertical): E.g., SE/VE series for east-west tracking; common in utility-scale farms.
Dual-Axis: E.g., DAD series for azimuth/elevation adjustments; ideal for CPV or high-latitude sites.
Enclosed vs. Open: Enclosed for harsh environments (IP66); open for easier access.
Motor Options: DC planetary (24V for low power), AC geared, or hydraulic for heavy-duty. Sizes range from 3" to 25" diameters, with gear ratios of 40:1 to 3000:1 for precision.
5. How Do You Select and Install a Slewing Reducer for Solar Trackers?
Selection factors: Array size/load (torque needs), site conditions (wind speed, corrosion risk), tracking type, and budget. Calculate based on tilting moment (e.g., 33.9 kN·m) and backlash (<0.5° for precision). Installation: Mount upside-down on azimuth axis for drainage; align north-south for single-axis; torque bolts per specs; integrate with GPS/time-based controllers. Consult manufacturers for custom designs.
6. What Maintenance Is Required for Slewing Reducers in Solar Systems?
Minimal due to sealed design: Inspect seals annually for cracks; regrease every 2 years (use high-temp lithium-based); check motor alignment and backlash quarterly. Monitor via encoders for position errors. In dusty/coastal areas, clean housings biannually. Lifespan: 20-30 years with proper care, far outlasting actuators in reliability.
