The MBY/JDX series edge drive mill reducers are high-power, high-torque, low-speed, heavy-load reducers specifically designed for the cement and power industries. Their design incorporates the strengths of similar domestic and international products, summarizing design and manufacturing experience both domestically and internationally. Utilizing modern gear design and manufacturing technology, these reducers offer safety, reliability, and a long service life under harsh operating conditions, including severe shock loads and continuous operation. They are widely used in cement and coal mills, among other grinding equipment, that utilize edge drive mechanisms.

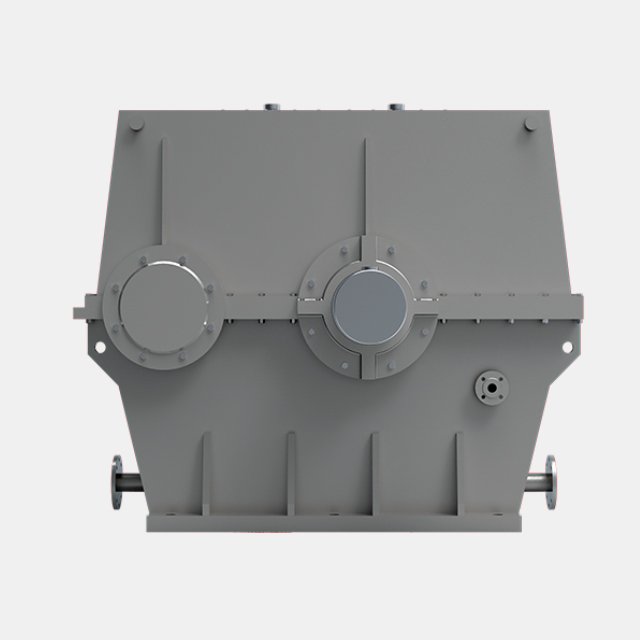

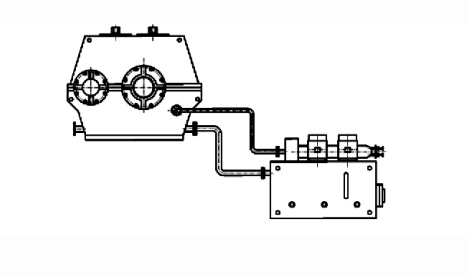

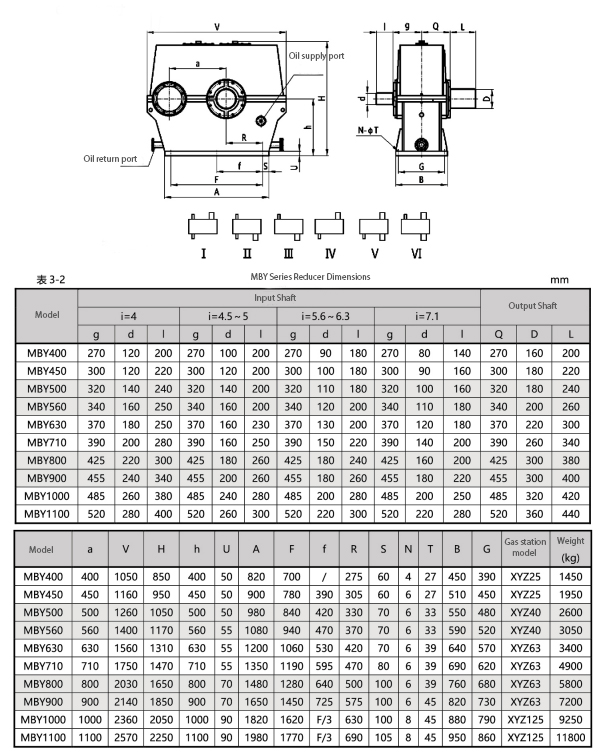

MBY series edge drive mill reducer

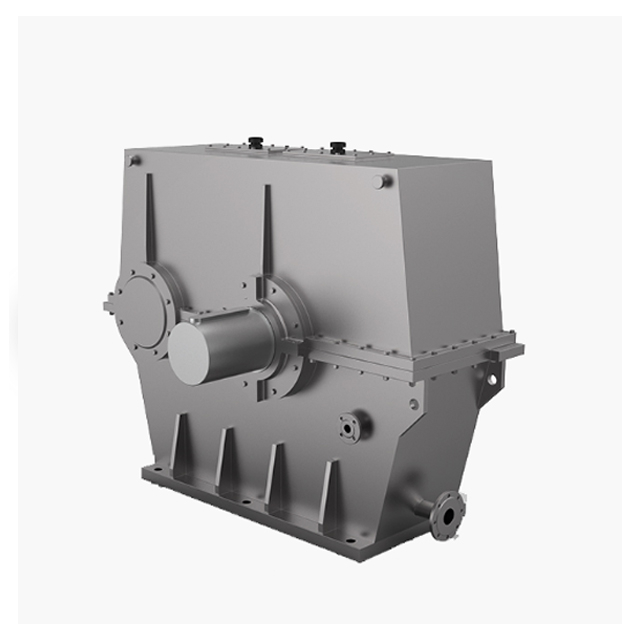

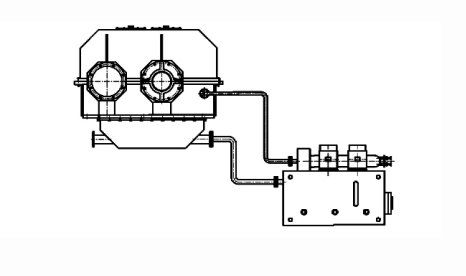

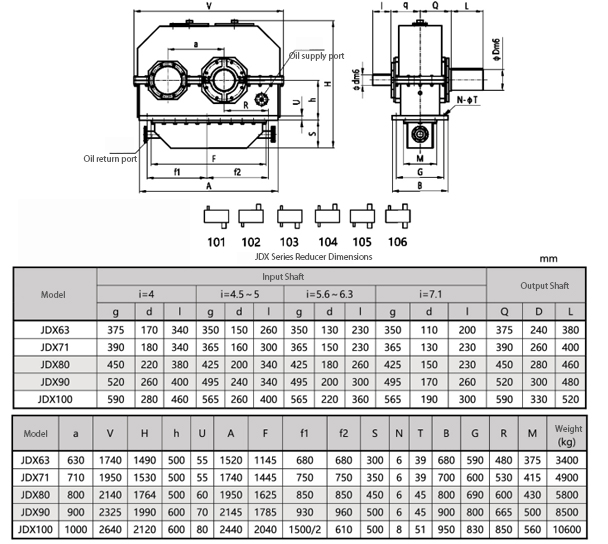

JDX series edge drive mill reducer
Exceptional Durability: Crafted from low-carbon alloy steel with carburizing and grinding, achieving 54-62 HRC hardness and grade 6 precision (ISO 1328), ensuring long lifespan under heavy loads.
High Transmission Efficiency: Precision involute gears deliver up to 98% efficiency, minimizing energy loss and operational costs in cement and mining applications.
Low Noise Operation: Optimized gear meshing reduces noise, ideal for continuous, low-speed (1-2 RPM) grinding in noisy industrial environments.
Robust Load Capacity: Handles large input power (200-5,000 kW) and up to 120% overload, providing reliable torque for crushing ores and clinker.
Structural Stability: Finite element method (FEM)-optimized housing prevents deformation, ensuring smooth performance under high-torque conditions.
Modular and Cost-Effective: Versatile design with single/double shaft options and short lead times, offering cost-efficient solutions for diverse mill configurations.
1.What are the primary applications of the MBY/JDX series reducers?
These reducers are optimized for edge-drive systems in tube mills, cement mills, coal mills, and similar equipment used in building materials, mining, metallurgy, chemical, and sugar industries. They handle crushing of ores, coal sheets, and cement clinker under continuous, heavy-impact loads.
2.What are the key design features and construction materials?
Gear Transmission: Single-stage parallel-axis involute cylindrical gears with hardened tooth surfaces (low-carbon alloy steel, carburized, quenched, and ground). Hardness and Precision: Tooth surface hardness of 54–62 HRC; gear accuracy Grade 6 (per ISO 1328). Housing: Analyzed and optimized via Finite Element Method (FEM) for minimal deformation and stable operation. Modular Design: Highly modular with multiple optional accessories; available in 4 basic assembly structures and up to 9 product models. Efficiency: Up to 95% or higher, with low vibration and noise.
3.What are the operating conditions and environmental requirements?
Temperature Range: -40°C to +40°C. Preheat lubricants if below 0°C; implement cooling if above 40°C. Load Handling: Designed for large input power, oversized torque, low speeds, heavy impacts, and continuous operation in harsh environments (e.g., dust, vibration). Input/Output: Single or double input shafts; output on one or two sides. Equipped with a dedicated oil station for lubrication.
4.How do MBY and JDX series differ?
Both are edge-drive variants, but MBY/MBYX often emphasizes modular, high-efficiency designs for cement/coal mills with single-stage reduction. JDX focuses on industrial hard-tooth surface gearboxes with similar structures but tailored for specific ratios and assembly types. They share overlapping specs and are sometimes used interchangeably in mill applications.
5.What maintenance is recommended?
Regular lubrication checks using the integrated oil station. Monitor for unusual vibration/noise, which could indicate misalignment (though FEM-optimized housing minimizes this). Annual inspections for gear wear, especially in high-impact environments. No special tools needed for basic servicing due to modular design; consult manufacturer for torque specs during reassembly.
6.What are the advantages over other mill reducers?
Reliability: Summarizes domestic/international experience for safe, long-life performance (e.g., >20 years design life).
Energy Efficiency: Low consumption, high energy conservation.
Customization:Short delivery times; cost-effective with options for servo-compatible power ratings (working coefficient >1.2).
Performance: Lower noise, optimized meshing, and secured manufacturing quality.
