The GR Series Helical Geared Motors, manufactured are engineered for heavy-duty industrial applications, including hoisting gears, conveyors, and material handling systems. Featuring parallel-shaft helical gears with single-stage, two-stage, or three-stage configurations, these motors deliver high efficiency, smooth operation, and reliable torque transmission. With minimal input and output shaft eccentricity, the GR Series offers versatile foot-mounted or B5 flange-mounted installations, optional extended bearing housing, and flexible input shaft designs, including single or two-stage bevel gear combinations. Ideal for demanding environments, these compact, high-performance gearboxes ensure durability and seamless integration into industrial automation systems.
| Item | Parameters |
| Power | 4-6000kw |
| Speed Ratio | 1.25-450 |
| Maximum Output Torque(kN.m) | 950 |
Robust Housing:Made from cast iron or welded steel plate, ensuring high strength and resistance to vibration.
Flexible Input Configurations:Supports keyed solid shaft, IEC-normalized motor flange, or adaptors for easy motor integration.
Versatile Output Options:Offers solid shaft (single/double), hollow shaft with keyway, spline, shrink disc, or flange for diverse mounting needs.
Wide Reduction Ratios:Features 1 to 4 reduction stages with speed ratios ranging from 1.25:1 to 450:1, combinable with other series for broader ranges.
High Torque Capacity:Designed to handle large-scale industrial torque, suitable for high-power motors in heavy machinery.
Mounting Flexibility:Available in horizontal, vertical, or flange-mounted configurations with a modular design for compact layouts.
High Efficiency and Durability: Achieves efficiency above 95% per stage, with low noise, stable transmission, and durability against shock loads and overhung/axial forces due to hardened tooth surfaces.

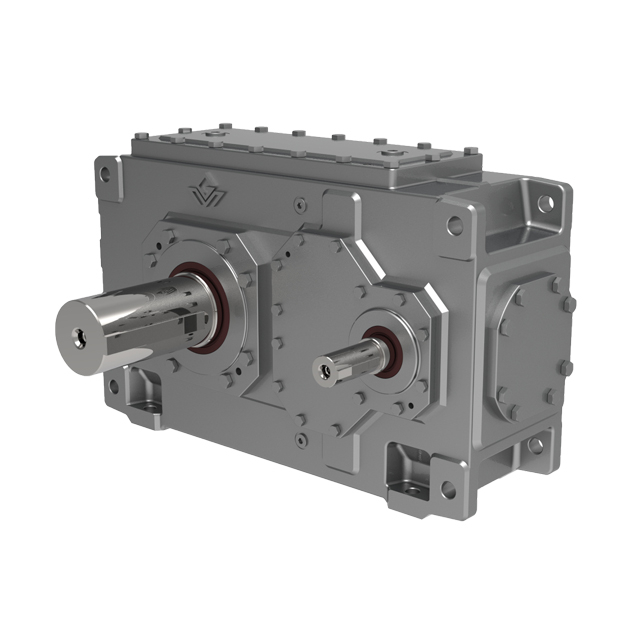

What is the HB Series Industrial Gearbox?
The HB Series includes heavy-duty gear units with parallel shaft (H Series) or right-angle helical bevel (B Series) configurations. They are built for high-torque, high-power applications in industries like mining, cement, steel, cranes, and marine equipment, offering robust construction and modular design.
What are the primary applications for HB Series gearboxes?
They are used in heavy industries for equipment like conveyors, crushers, mixers, turbines, cranes, and marine drives. The B Series is ideal for right-angle setups in space-constrained applications, while the H Series suits straight-line power transmission.
What materials are used in HB Series gearboxes?
Housings are made of high-strength cast iron (e.g., HT250) or welded steel plates for vibration resistance. Gears are typically 20CrMo alloy steel, carbonitrided to HRC 58-62 for durability and wear resistance. Selection and Specifications
How do I choose the correct HB Series gearbox size and ratio?
Select based on motor power (kW), input speed (RPM), required output torque, and service factor (e.g., 1.25 for moderate loads, 1.75 for heavy/shock loads). The HB Series offers 1 to 4 reduction stages with ratios from 1.25:1 to 450:1. Sizes (e.g., 1-26) support up to 160 kW or higher. Check thermal capacity for ambient temperatures above 30°C using manufacturer catalogs.
What is the efficiency and noise level of HB Series gearboxes?
Efficiency exceeds 95% per stage due to profile-ground helical and lapped bevel gears. Noise levels are typically below 85 dB, ensuring stable and quiet operation even under heavy loads.
What mounting and output options are available?
Mounting options include horizontal, vertical, or flange-mounted configurations with a modular design for compact layouts. Output options include solid shafts (single/double), hollow shafts with keyway, spline, shrink disc, or flange for versatile installation.
What input configurations are supported?
Input options include keyed solid shafts, IEC-normalized motor flanges, or adaptors for seamless integration with various motor types.
What is the torque capacity of HB Series gearboxes?
They are designed for large-scale industrial applications, with torque capacities up to 950 kN·m, suitable for high-power motors in heavy machinery.
How often should HB Series gearboxes be maintained?
Inspect oil levels every 500 hours initially, then every 2,000-4,000 hours. Change lubricant (preferably synthetic for heavy duty) every 5,000-10,000 hours or annually. Check seals and gears for wear. Bearings typically last over 50,000 hours (L10 life) under normal conditions.
